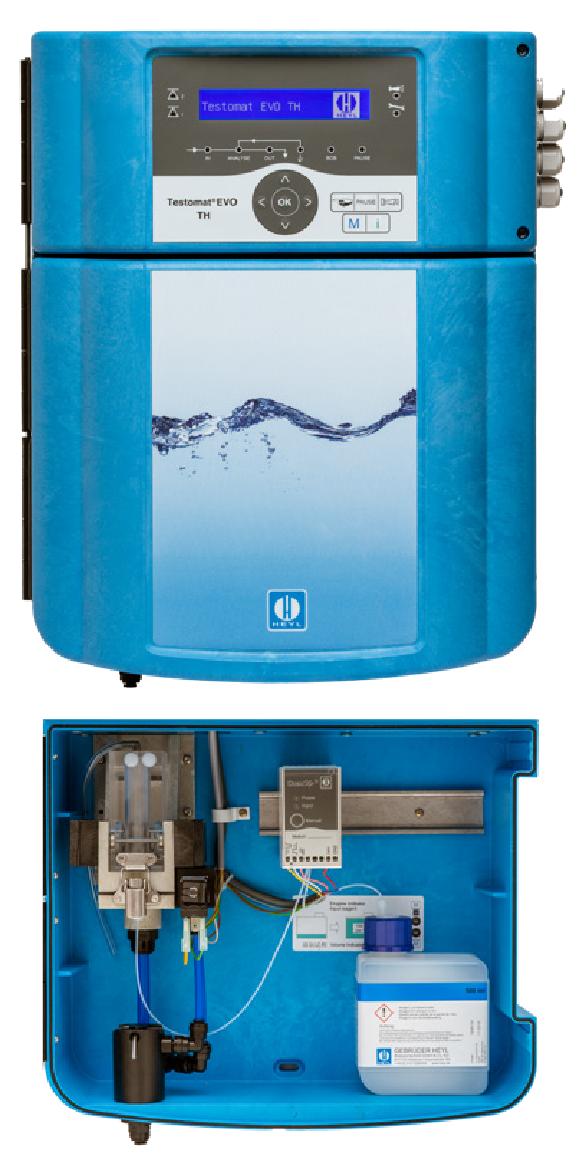

Testomat® EVO TH
The Testomat® EVO TH determines the water hardness fully
automatically by means of titration. The device is suitable
for checking the water quality of water treatment plants,
drinking water plants, industrial boilers and for monitoring
process water.
The Testomat® EVO TH convinces with new functionalities:
• TÜV-certified
• Optical water detection when filling the measuring
chamber
• Import and export of settings (basic programming)
with selectable file
• name
• Logging of measurement data and messages/
alarms by means of an integrated SD or optional
SDHC card (2 GByte)
• Firmware update via SD card
• LCD – graphic display
• Multilingual menu navigation with simple
switching (internal pro- gramming is retained)
• Integrated self-test with continuous monitoring
• External erase/acknowledge input
• Freely programmable password
• Automatic venting of the indicator line
• Doors individually changeable
• Range monitoring (falling below limit value
1/ exceeding limit value
• Permissible number of water shortages freely
programmable (for systems with temporarily
low water pressure)
• Measurement data transfer via RS 232 interface
Performance Profile
• High-precision titration using a piston
metering pump
• Analog output 0/4 – 20 ma
• Programmable hardness unit in° dH,°f, ppm
CaCO3, mmol/l
• 2 independent limit values with adjustable
switching functions as well as switching
possibility after adjustable number of bad
analyses
• Analysis trigger:
– automatic interval operation (0-99 minutes)
– quantity-dependent via contact water meter
• Indicator quantities: 100 and 500 ml bottles
